Cemented Carbide End Mill 2 Flutes Ball Nose End Mill

Xiangtan Eagle Trade Co. Ltd
Contact Now

Cemented Carbide End Mill 2 Flutes Ball Nose End Mill

Place of Origin : China

MOQ : 10 pieces

Packaging Details : Plastic Box

Payment Terms : T/T, L/C, Paypal

Contact Now

Ball Nose Endmill

HRC 45°, HRC 55° and HRC 60°

The non-standard size can be offered.

SIZE WORK MATERIAL HRC
FLUTE NUMBER CUTSIDE DIAMETER FLUTE LENGTH SHANK DIAMETER OVERALL LENGTH
2 R0.5 2 4 50 45°/55°/60°
2 R0.75 3 4 50 45°/55°/60°
2 R1 4 4 50 45°/55°/60°
2 R1.25 5 4 50 45°/55°/60°
2 R1.5 6 4 50 45°/55°/60°
2 R1.75 7 4 50 45°/55°/60°
2 R2 8 4 50 45°/55°/60°
2 R0.5 2 6 50 45°/55°/60°
2 R0.75 3 6 50 45°/55°/60°
2 R1 4 6 50 45°/55°/60°
2 R1.5 6 6 50 45°/55°/60°
2 R2 8 6 50 45°/55°/60°
2 R2.5 10 6 50 45°/55°/60°
2 R3 12 6 50 45°/55°/60°
2 R4 16 8 60 45°/55°/60°
2 R5 20 10 75 45°/55°/60°
2 R6 24 12 75 45°/55°/60°
2 R8 30 16 100 45°/55°/60°
2 R10 30 20 100 45°/55°/60°


Quality Cemented Carbide End Mill 2 Flutes Ball Nose End Mill wholesale

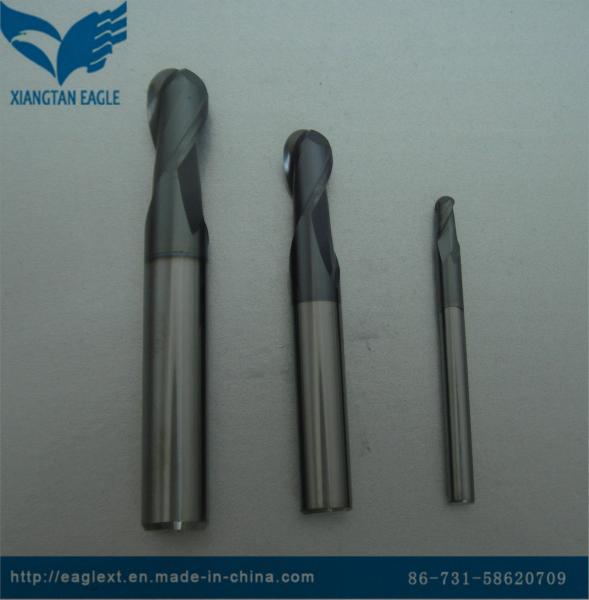

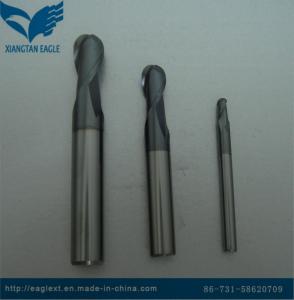

Cemented Carbide End Mill 2 Flutes Ball Nose End Mill Images
